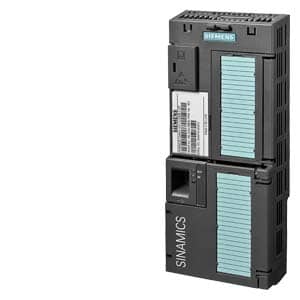

***spare part*** SINAMICS G120 Control Unit CU240B-2 DP B type PROFIBUS DP 4 DI, 1 DQ, 1 AI, 1 AQ PTC/KTY/thermoclick interface USB and SD/MMC interface degree of protection IP20 ambient temperature 0 to +50 °C without Power Module Control Unit SINAMICS CU240B-2 DP Control Unit for basic variable-speed drive applications together with the modular SINAMICS G120 inverter. The CU240B-2 Control Unit is part of the modular SINAMICS G120 inverter (comprising power unit, control unit, operator panel).The control unit is designed for all of the usual applications with U/f or vector control. These include encoderless basic applications in general machinery construction.The CU240B-2 Control Unit controls and monitors the power unit (Power Module) and the connected motor; several control modes can be selected. It facilitates communication to a local or central control system as well as to the monitoring equipment – and is used to connect all process-related auxiliary equipment and external components (sensors, valves, contactors, etc.)The I/O interface, the fieldbus interfaces and the additional software functions optimally support its use in general machinery construction.For intuitive series commissioning, a card slot is provided for cloning parameters sets. The communication interface of the inverter is defined when selecting the CU240B-2. The following integrated communication versions are available: CU240B-2 with USS and Modbus RTU protocols and CU240B-2 DP PROFIBUS.The Control Unit can be operated with the following SINAMICS power units: PM240-2 (0.55 kW to 132 kW) and PM240 (up to 250 kW). SINAMICS – simply my drive!
Manufacturer Name: Siemens
Manufacturer type: SINAMICS G120 CU240B-2 DP
Logistic details:
Customs number: 85049090
Country of origin: GB
*Products in stock are shipped in 1 or 2 working days after receipt of payment.
Products out of stock will be ordered from the manufacturer (Order on request) and then shipped as soon as they arrive at our warehouse.
Delivery times depend on the location of the delivery address, chosen shipping service and customs procedures.
