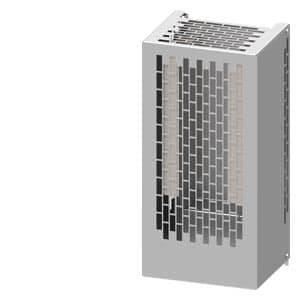

Fa. Heine Breaking resistor FOR POWERMODULE PM240-2 FSD P_MAX=22kW/12S/5% ED R=25 OHM P_DAUER=1100W Accessories for inverters braking resistor for the PM240-2 Power Module for modular SINAMICS G120 inverters. The excess DC link energy is dissipated using braking resistors.They are intended for use with PM240-2 and PM240 Power Modules (mounted next to the Power Modules). These Power Modules are equipped with an integrated braking chopper and cannot regenerate back to the line supply. For regenerative operation, e.g. when braking flywheel loads with a high moment of inertia, a braking resistor should be connected that converts the generated energy into heat.The braking resistors for the Power Modules, frame sizes FSD to FSGX, should be placed outside the control cabinet or outside the switchgear room so that the heat is dissipated away from the Power Modules. This reduces climate control costs.Every braking resistor is equipped with a temperature switch. The temperature switch should be evaluated in order to avoid subsequent damage if the braking resistor is thermally overloaded. Braking resistors are available for frame sizes FSA to FSC – as well as for PM240-2 Power Modules (frame sizes FSC to FSF). An optional Braking Module is available for frame size FSGX. SINAMICS – simply my drive!
Manufacturer Name: Siemens
Manufacturer type: Fa. Heine Breaking resistor 400V FSD,
Logistic details:
Customs number: 85332900
Country of origin: DE
*Products in stock are shipped in 1 or 2 working days after receipt of payment.
Products out of stock will be ordered from the manufacturer (Order on request) and then shipped as soon as they arrive at our warehouse.
Delivery times depend on the location of the delivery address, chosen shipping service and customs procedures.
